Machine Learning & Half Moon Project

-
This was our first Machine Learning assignment. Machine Learning is something that I was (and still am) super excited about. Basically, the algorithm 'learns' something, and can then apply it in other situations.

Learning & Neurons

This was the toughest concept to learn (ha). We started with a Neuron, similar to the neurons in our brains. The neuron can trigger (yes/no) based on a series of inputs, in our case two inputs. The equation for whether or not the neuron triggers is SUMMATION(Weight(n) * Input(n)) > threshold. Each input is weighted differently, and the weights are what we can change to 'train' the neuron. We use this equation: ΔWeight = learningSpeed * (target - output) * input. For example, if we start with a speed of 0.2, an input of 1, a weight of 0.5, and a target of 0, the weight would change by -0.2 (0.2 * (1 - 0) * 1). Now, with a weight of 0.3, repeat the process. Once each input returns the desired output, the best weights have been found.

Application: Half Moon Project

The Half Moon Project is a great application for the machine learning algorithm we learned. The goal is to separate two half-moons by a linear line.
In the example to the right, these half-moons cannot possibly be separated by a linear line, due to the fact that the distance between them is negative. However, if the distance is positive, the moons can be separated, as seen in the second picture.


Comments

Post a Comment

Popular updates

Half Moon Project Part 2 - More Accuracy

-

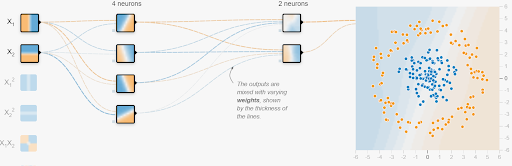

This time around, we used the Neuroph library to create a neural network  that can divide the double half-moons more accurately. Neural Networks A Neural Network is a combination of Neurons that feed into each other. Using some really complex math, they can weight each input (from a previous Neuron) differently. Then, after training, they can use backpropagation to calculate which weights should be edited. What this looks like can be seen below. More Accuracy for Half-Moons Since, previously, we were only using one neuron to calculate the line to separate the two moons, we could only draw a linear line. This time, with a more complex neural network, it can separate the two with a function that's super complicated. Theoretically, a human could also derive the equation, but it's so complex that at this point, it's easier to get the Neural Network to do it for us.
